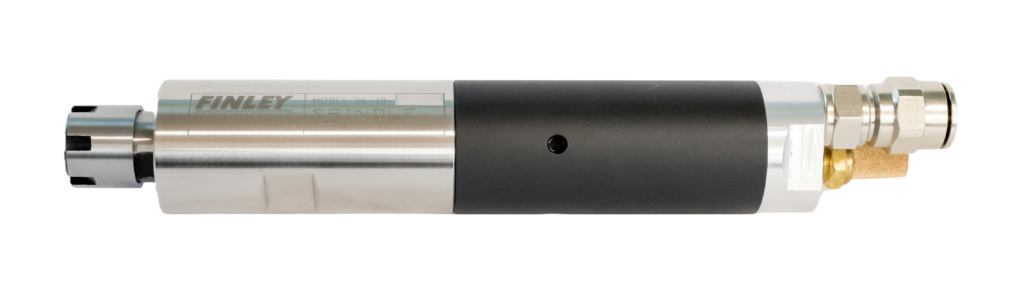

SERIES 36 – AIR MOTOR & BELT DRIVE SPINDLES

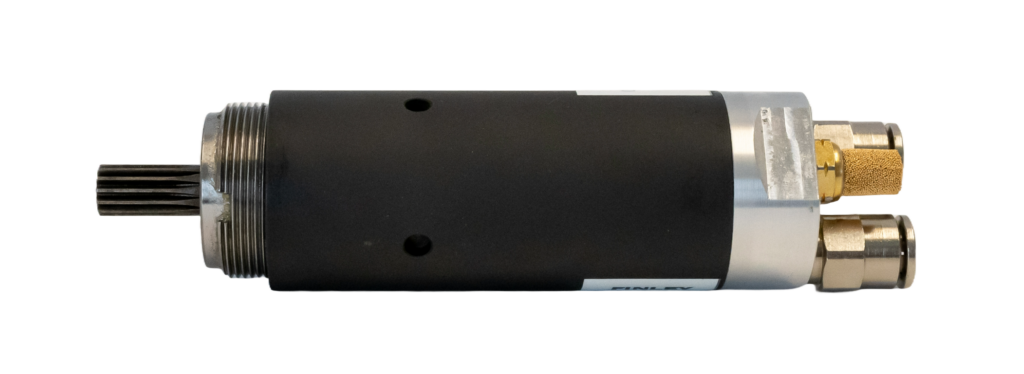

AIR MOTOR DRIVE

The Series 36 spindle is designed for high speed drilling, cutting and milling operations using standard RD – 16 collets*. Its high precision and compact size can be used in a wide variety of OEM machines to secondary CNC operations. The Series 36 air motor is capable of 21,500 RPM with direct drive or lower RPM’s with integral planetary gears. Gear train has been designed for long life with needle bearings in-side each gear.

BELT OR SHAFT DRIVE

The Series 36 design also allows for belt drive configurations which is widely used with conjunction of Servo motors for maximum versatility.

Performance Specifications & Dimensions:
